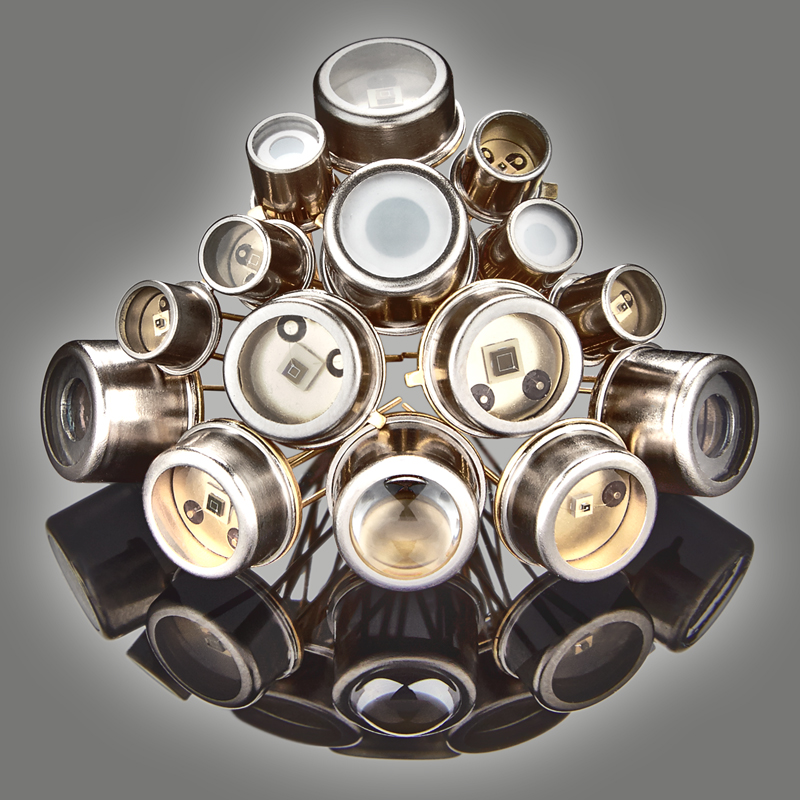

矽碳紫外線二極體 SiC UV Photodiodes

Active area from 0,06mm² to 36mm² and quadrant
photodiodesfor position detections

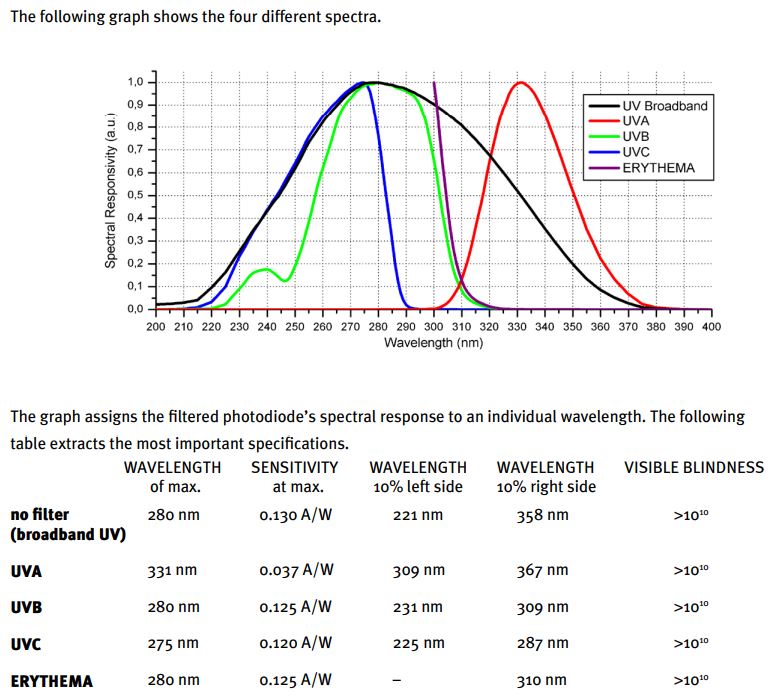

spectral response for broadband UV or filtered for
UVA, UVB, UVC or UV-Index

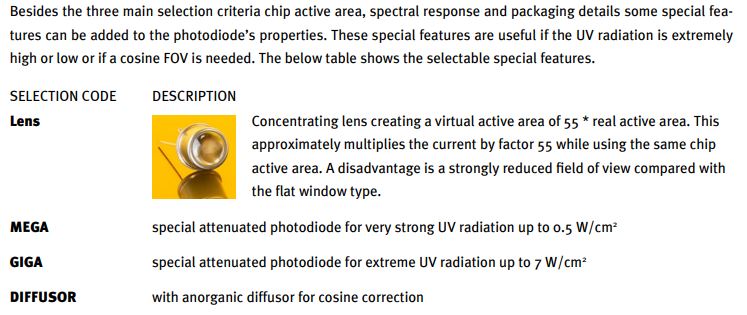

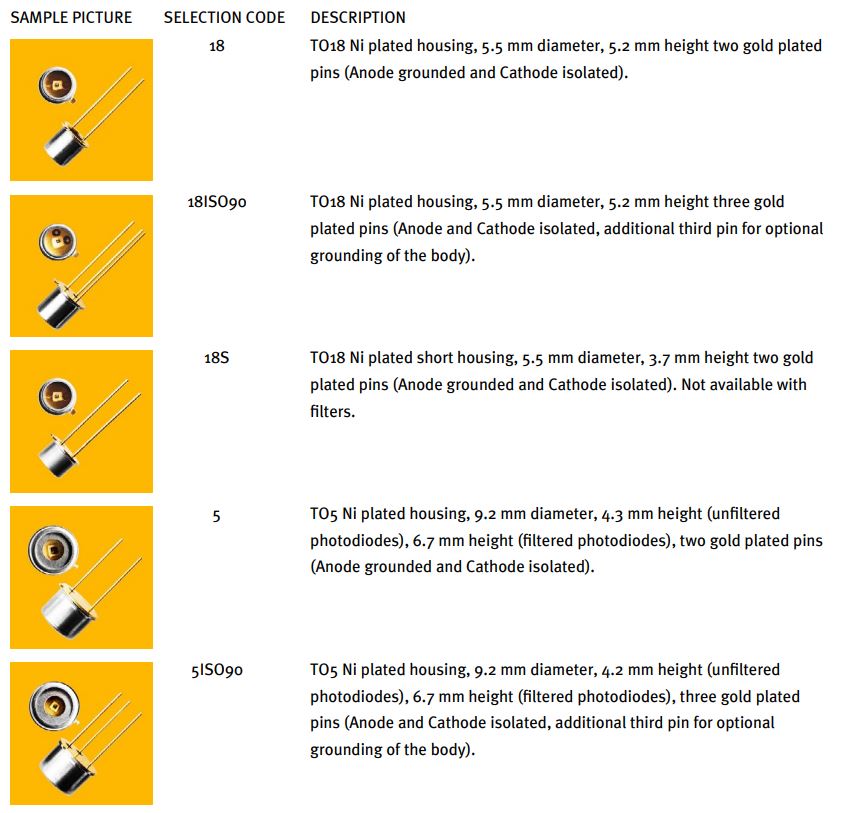

Different housing types and special features

In house production since 2009

PTB (German equivalent of NIST or NPL) measured
high radiation hardness

350°C high temperature stable photodiodes available

SiC UV Photodiodes最新產品目錄

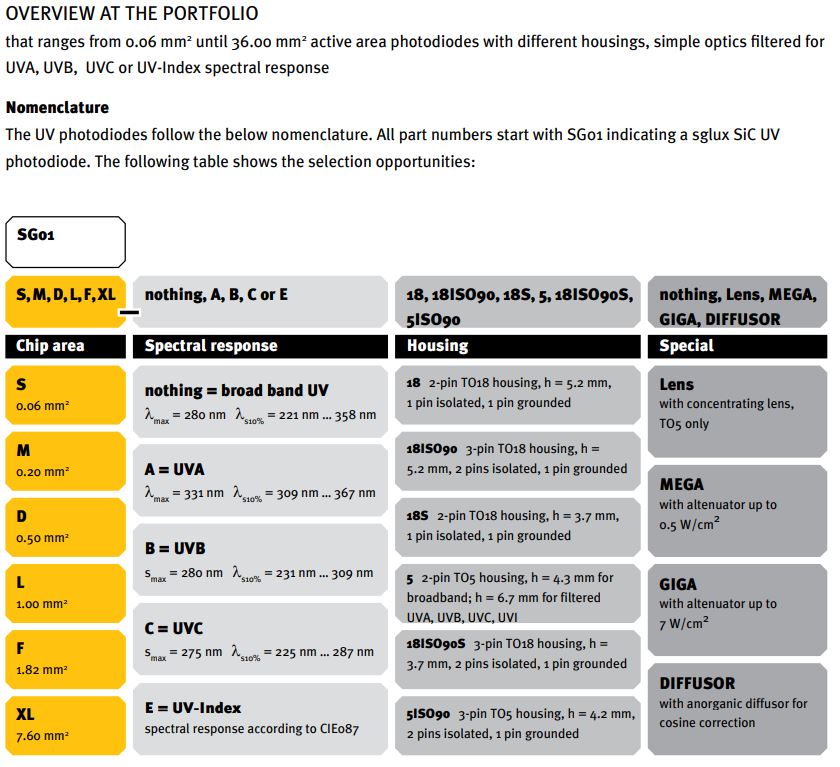

如何挑選產品型號
矽碳紫外線二極體的所有型號都以 SG01 開頭，請依照下面挑選適合您的產品型號：


SiC UV Photodiodes Datasheet 詳細規格下載
	Chip Area [S]=0.06 mm²	Chip Area [M]=0.20 mm² *6H SiC chip for enhanced UV sensitivity	Chip Area [D]=0.50 mm²	Chip Area [L]=1.00 mm²	Chip Area [F]=1.82 mm² [XL]=7.60 mm² [XXL]=36 mm² [Q]=Quadrant
Broadband	SG01S-18 SG01S-18S SG01S-18ISO90 SG01S-18D SG01S-5 SG01S-5Lens	SG01M-18 SG01M-18S SG01M-18ISO90 SG01M-5 SG01M-5LENS 6H SiC chip SG01M6H-18 6H SiC chip SG01M6H-5	SG01D-18 SG01D-18S SG01D-18D SG01D-5 SG01D-5LENS SG01D-18ISO90 SG01D-5ISO90	SG01L-18 SG01L-18S SG01L-18ISO90 SG01L-5 SG01L-5ISO90 SG01L-5Lens	SG01F-5ISO90 SG01XL-5 SG01XL-5ISO90 SG01Q-5 *TO8, isolated SG01XXL-8ISO90

UVA	SG01S-A18 SG01S-A5	SG01M-A18 SG01M-A5	SG01D-A18 SG01D-A18ISO90 SG01D-A5	SG01L-A5 SG01L-A18	SG01XL-A5

UVB	SG01S-B18	SG01M-B18 SG01M-B5	SG01D-B18 SG01D-B18ISO90	SG01L-B5 SG01L-B18	SG01XL-B5

UVC	SG01S-C18 SG01S-C18D SG01S-C18ISO90 SG01S-C18ISO90D SG01S-C5	SG01M-C18 SG01M-C18ISO90 SG01M-C5 SG01M-C5ISO90 SG01M-C5D	SG01D-C18 SG01D-C18ISO90 SG01D-C5ISO90 SG01D-C5Lens SG01D-C5D	SG01L-C5 SG01L-C5D SG01L-C18	SG01F-C5 SG01XL-C5

UV-Index (Erythema)				SG01L-E5 SG01L-E5D
