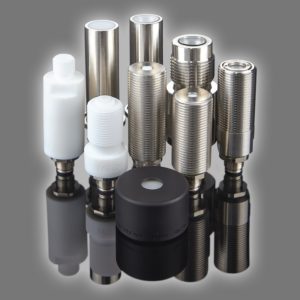

various optics and housings tailored for individual conditions of use
0 to 5 V voltage, 0 to 10 V voltage, 4 to 20 mA current loop or digital interface (CAN or USB) output options
every probe is also available with Android smartphone as a display device
SiC photodiode chip based Broadband UV sensitivity or filtered for UVA, UVB, UVC or UV-Index spectral sensitivity
GaP-chip based series for blue light hazard measurement
to be calibrated with potentiometers or microprocessors – provision for recalibration in the field by qualified users is available in some models
calibration services available at our Berlin facility prior to delivery and after use
The applications of UV sensor probes are quite varied and include use and survival at high temperatures, in rain, under water as well as in normal environments. recommend to use a EMC-tested switching power supply with earth conductor, e.g. Meanwell MDR-10

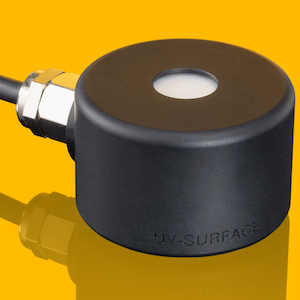

This UV sensor sensor is used for UV radiation reference measurements on surfaces exposed to UV light. It is
available with a NIST or PTB traceable calibration. Cosine correction is available on request.
UV-Surface 詳細規格
“UV-Air” - Threaded body UV sensor
This UV sensor is a sensor with a male threaded body (M22x1.5). It is available with a NIST or PTB traceable
calibration.
UV-Air 詳細規格
“UV-Cosine” - Waterproof UV Sensor for outdoor use
This UV sensor is a cosine corrected waterproof sensor with a male threaded body (M20x1.5). The PTFE housing is
stain repellent. This UV sensor is suited for outdoor or in-water UV measurements. It is particularly suited for UVIndex measurements. The UV sensor is available with a NIST or PTB traceable calibration.
UV-Cosine 詳細規格

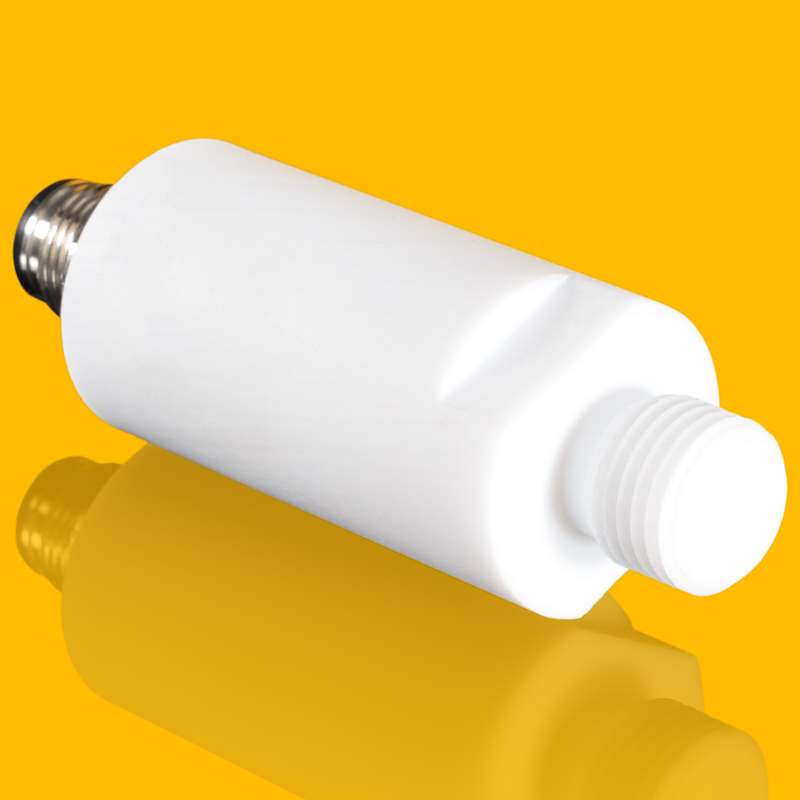

“UV-Water-PTFE” - 10 bar water pressure proof UV
sensor with G1/4“ thread
TThis UV sensor is a waterproof (10 bar or 145 psi) sensor with a G1/4" thread to be used in pressurized water systems.
The sensor housing is made of Tefl on (PTFE). The sensor is suited for low pressure lamps. The UV sensor is available
with a NIST or PTB traceable calibration.
UV-Water-PTFE 詳細規格

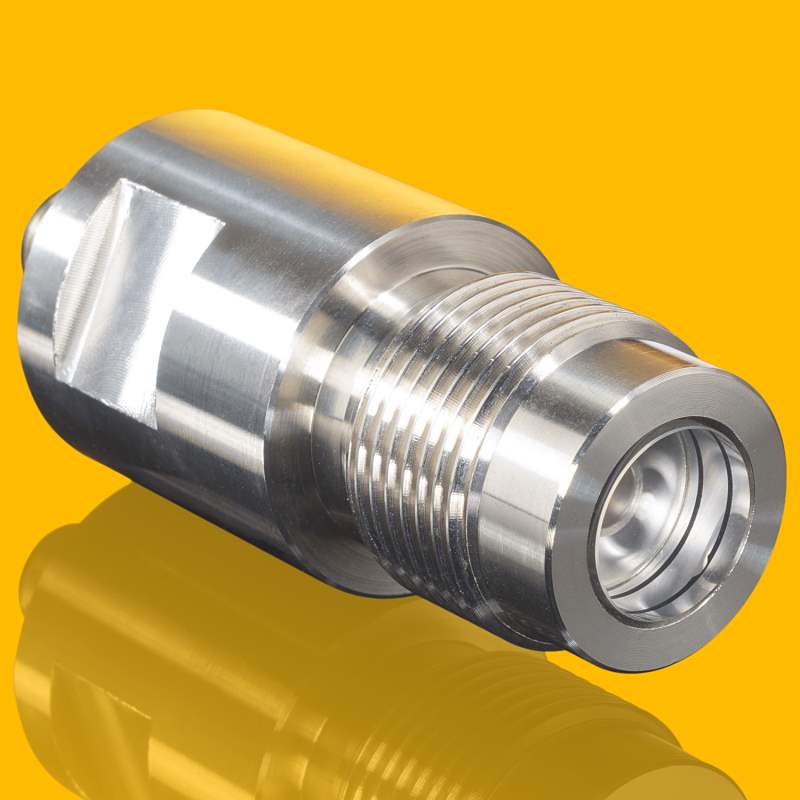

“UV-Water-G3/4” - 10 bar water pressure proof UV sensor with G3/4” thread
This UV sensor is a waterproof (10 bar or 145 psi) sensor with a male threaded body (G3/4”) to be used in pressurized
water systems. It is suited for low and medium pressure lamps. The UV sensor is available with a NIST or PTB
traceable calibration.
UV-Water G3/4”詳細規格
“UV-DVGW” - UV Sensor for DVGW certified water purifiers
This UV sensor is a special sensor for DVGW certifi ed water purifiers with 40° field of view. It complies with the
standard DVGW W294-3(2006). It is always delivered calibrated according to DVGW requirements. A water-proof
measurement window ("WIN294") is available.
UV-DVGW 詳細規格
"UV-OENORM"- UV Sensor for DVGW (160°) and OENORM certified water purifiers
This UV sensor is a special sensor for DVGW and OENORM certified water purifiers with 160° field of view. Suitable for
low pressure and medium pressure lamps. It complies with the standard DVGW W294-3(2006) and OENORM 5873-2. Always
delivered calibrated according to DVGW and OENORM requirements. A water-proof
measurement window ("WIN294") is available.
UV-OENORM 詳細規格
“TOCON-probe” - Miniature UV sensor
This UV sensor is a miniature UV sensor with a male threaded body (M12x1) confi gured with an amplifi ed UV
photodetector. The signal output is a voltage of 0 to 5 V. The UV sensor is available with a NIST or PTB traceable
calibration.
TOCON-probe 詳細規格

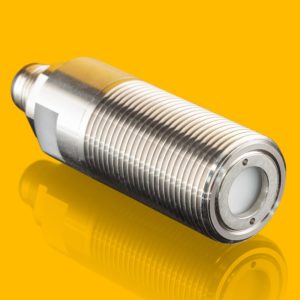

“UV-Cure” - Sensor for strong UV irradiation, working
temperature up to 170°(338°F)
This UV sensor is an axial looking sensor with a male threaded body (M22x1.5) for measurement of high UV radiation
to control i.e. curing or drying processes where strong UV light is present. It works with a diffuser made of radiation
hard and temperature resistant microporous quartz glass. The UV sensor is available with a NIST or PTB traceable
calibration.
UV-Cure 詳細規格
Step 2: Selection of Spectral Responsivity
Broadband UV
UVA
UVB
UVC
UV-Index
Blue
Gap
Step 3: Selection of The Signal Output Type
Android
0....5V
0....10V
4....20mA
Digital USB
Digital CAN
Step 4: Selection of Connection/Cabling
Plug Sensor is configured with 5 pin male connector with 2m Cable with tinned leads on free end.
Cable Sensor is configured with 2m cable with tinned leads on free end.
Step 5: Selection of Additional Features
Calibration of UV sensor probe Irradiance calibration of an sglux UV sensor for measurements at a specific UV source
Temperature sensor (analog-optional) PT100 temperature sensor integrated in the probe housing
Measurement window WIN294 Measurement window for certifed UV sensor probes according to DVGW 294-3(UV-DVGW)and ONORM M5873
