紫外線輻射照度計 UV Radiometer

  • A UV radiometer is needed for quantification and documentation of the impact of UV radiation on biological or chemical processes, as well as the UV effect on the health of human beings, animals, plants or material properties (i.e. occupational and environmental impacts).

  • The features of a UV radiometer of choice will depend on the individual customer’s requirements or a standard/guideline. The following UV radiometers are available for different purposes, viz. for validation of DVGW/OENORM duty sensors (DVGW W 294-3:2006 / OENORM M 5873); for UV hazard assessment in workplaces (2006/25/EC); and for the measurement of the UV Index (ISO 17166). The last category refers to UV radiometers that are configured and calibrated according to the customer’s requirements and UV datalogger for long-term UV dosimetry.

  • Alternatively, the digital UV sensor can be connected to a Smartphone (Android) using a free Android radiometer / dosimeter app.

  • UV Radiometers 最新產品目錄

UV radiometers for UV purifier sensor validation
[Reference radiometers for validation of water purifier duty sensors according to guideline DVGW W 294-3:2006 and OENORM M 5873]

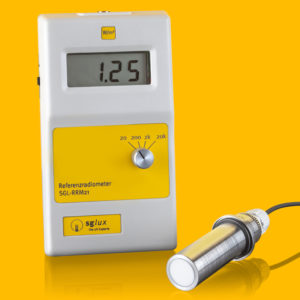

"UVRRM OENORM"
  • Reference radiometer for validation of OENORM/DVGW-160° duty sensors
  • The unit is powered with a 9V battery that allows several years of use if seldomly used.
  • PTB traceable calibration according to OENORM M 5873
  • UVRRM OENORM 詳細規格

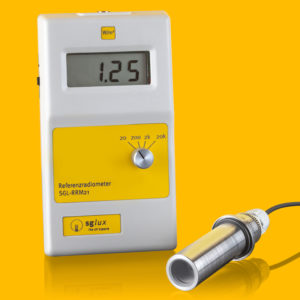

"UVRRM DVGW 40°"
  • Reference radiometer for validation of DVGW-40° duty sensors
  • The unit is powered with a 9V battery that allows several years of use if seldomly used.
  • PTB traceable calibration according to DVGW W 294-3:2006
  • UVRRM DVGW 40° 詳細規格

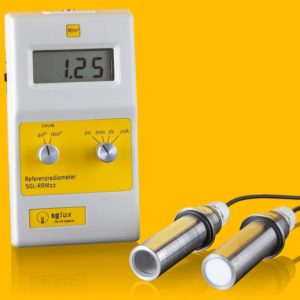

"UVRRM DVGW 40° + OENORM"
  • Reference radiometer with two sensors for validation of 40°-DVGW and 160°-OENORM duty sensors
  • The unit is powered with a 9V battery that allows several years of use if seldomly used.
  • PTB traceable calibration according to DVGW W 294-3:2006 and OENORM M 5873
  • UVRRM DVGW 40° + OENORM 詳細規格

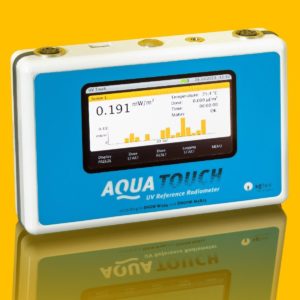

"AQUATOUCH"
  • 2-channel reference radiometer for validation of DVGW-40° and/or OENORM/DVGW-160° duty sensors
  • PTB traceable calibration according to DVGW W 294-3:2006 and OENORM M 5873
  • The AQUATOUCH device is designed for developers and for all-day use under harsh conditions.
  • It offers a broad range of functions such as a datalogger, data export and graphic display with trend information.
  • AQUATOUCH 詳細規格

UV radiometers for UV health & safety risk management
[Radiometers for hazard assessment of artificial UV radiation in workplaces according to European Community guideline 2006/25/EC as well as for hazard assessment of natural UV radiation in workplaces according to ISO 17166 standard (UV-Index)]

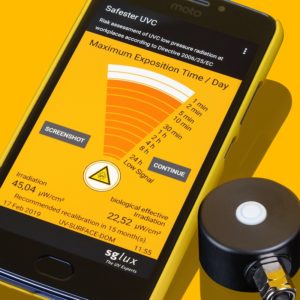

"Safester UVC"
  • Smartphone (Android) based radiometer for hazard assessment of artificial UV radiation emitted by low pressure UVC sources in workplaces according to European Community guideline 2006/25/EC
  • Visualization of the maximum exposure time per day with acoustical and optical warning features
  • The radiometer complies with class 1 (highest precision requirements) of DIN 5031-11 for actinic radiometers.
  • The price includes a UVC sensor with PTB traceable calibration, a calibration certificate and a smartphone.
  • This product is also available as software download without the Smartphone.
  • Safester UVC 詳細規格

"Safester UVI"
  • Smartphone (Android) based UV-Index radiometer with graphic display for hazard assessment of natural UV radiation in workplaces according to ISO 17166 standard (UV-Index).
  • The price includes a UV index sensor with PTB traceable calibration, a calibration certificate and a smartphone.
  • This product is also available as software download without the Smartphone.
  • Safester UVI 詳細規格

"stand-alone UV Index Transmitter"
  • measurement of the UV Index
  • the UV sensor (sglux ERYCA) is featured by a spectral responsivity close to the erythema action curve as defined by ISO17166:2019
  • calculation of the UV Index according the WHO requirements
  • data transmission via cellular radio to a server using the MQTT protocol
  • PTB traceable calibration included
  • solar powered with integrated battery
  • various approaches to display the UV Index measured by the unit
  • stand-alone UV Index Transmitter 詳細規格

"UV-Index reference radiometer with UVI sensor probe"
  • Digital UV-Index radiometer with graphic display for hazard assessment of natural UV radiation in workplaces according to ISO 17166 standard (UV–Index).
  • This device is designed for developers and for all-day use under harsh conditions.
  • It offers a broad range of functions such as a datalogger, data export and graphic display with trend information.
  • The price includes a UV-Surface_UVI sensor with PTB traceable calibration, and a calibration certificate.
  • UV Sensor "UV-Surface_UVI" 詳細規格

Customized UV radiometers and UV dataloggers
[UV radiometers and UV dataloggers compliant with other standards or calibrated and configured according to customer’s requirements]

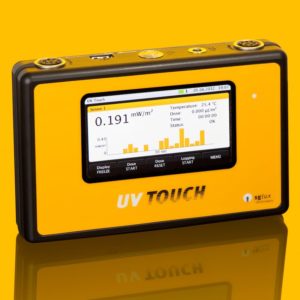

"UVTOUCH"
  • Digital 2-channel UV radiometer with graphic display, touch screen, dosimeter and datalogging function.
  • Data transmission (CAN) complies with GLP and LIMS standard.
  • The UVTOUCH device is designed for developers and for all-day use under harsh conditions.
  • The price includes one sglux UV sensor (free selection) and a customized PTB traceable calibration.
  • UVTOUCH 詳細規格

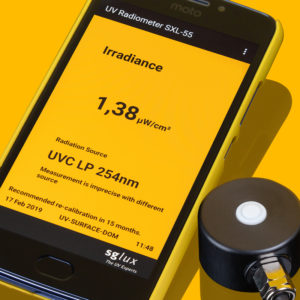

"UV Radiometer SXL 55 "
  • Smartphone (Android) based UV radiometer with graphic display and dosimeter function.
  • The price includes one sglux UV sensor (free selection) and a customized PTB traceable calibration.
  • This product is also available as software download without the smartphone.
  • UV Radiometer SXL 55 詳細規格

"UVMicrolog"
  • UV data logger for long-time monitoring of moving goods, persons or animals
  • incl. one calibrated sensor with application specific characteristics (broadband UV, UVA, UVB, UVC, erythema or v(lambda))
  • additional sensors e.g. temperature, pressure, rel. humidity, illuminance (VIS) available
  • 2,000,000 data records
  • available as IP67 version
  • incl. PC software
  • UVMicrolog 詳細規格

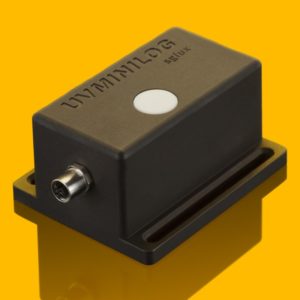

"UVMinilog"
  • UV data logger for long-time monitoring of moving goods, persons or animals
  • incl. one calibrated sensor with application specific characteristics (broadband UV, UVA, UVB, UVC, erythema or v(lambda))
  • additional sensors e.g. temperature, pressure, rel. humidity, illuminance (VIS) as well as a second UV sensor available
  • 2,000,000 data records
  • incl. PC software
  • UVMinilog 詳細規格
