UV-Index Measurement

  • Photodiodes for measurement of the UV Index, various optics and detector chip areas

  • UV sensors (TOCONs) with 0 to 5 V voltage output for measurement of the UV Index, various optics

  • UV sensor probes for measurement of the UV Index, cosine field of view

  • UV Index reference radiometers

  • High precision measurement of the UV-Index: Measurement uncertainty of these sensors is less 5 %, spectral response curve and the field of view (cosine type) in near perfect accordance with the requirements defined in the ISO 17166 standard

  • UV-Index Measurement 詳細資料

Our Products
Our components for measurement of the UV Index are listed below. It starts with UV-Index photodiodes (external photocurrent converter needed). Easiest to use components are the UV-Index TOCONs (photodiodes with internal amplifier for 0 to 5 V voltage output). The sglux UV-Cosine_UV-Index probe (ERYCA) is a waterproof sensor ready-to-mount outdoors with cosine field of view. A display unit and, alternatively, an Android app serves together with a sglux sensor probe as a UV-Index radiometer. All items will be delivered calibrated (PTB traceable) on request.

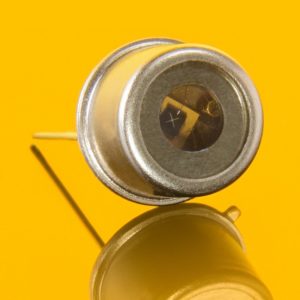

"UV-Index photodiode SG01L-E5D"
  • UV photodiode with UV-Erythem filter (UVI)
  • cosine corrected for UV index measurement acc. to ISO 17166, with measurement uncertainty less than 5 %
  • 1 UVI (2.5 μW/cm2) results approx. 2 nA
  • 1.00 mm2 detector area
  • TO5 hermetically sealed metal housing, 1 isolated pin and 1 case pin
  • SiC chip with PTB reported high radiation hardness
  • UV-Index photodiode SG01L-E5D 詳細規格

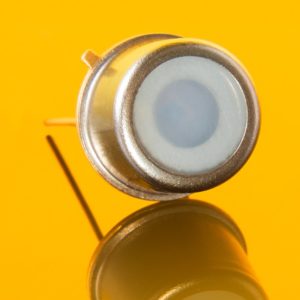

"UV-Index photodiode SG01L-E5"
  • UV photodiode with UV-Erythem filter (UVI)
  • for UV index measurements with measurement uncertainty less than 5 %
  • 1 UVI (2.5 μW/cm2) results approx. 2 nA
  • this item needs an appropriate cosine correction to meet the ISO 17166 requirements
  • 1.00 mm2 detector area(UVI)
  • TO5 hermetically sealed metal housing, 1 isolated pin and 1 case pin
  • SiC chip with PTB reported high radiation hardness
  • UV-Index photodiode SG01L-E5 詳細規格

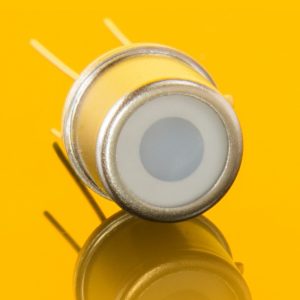

"UV-Index sensor TOCON_E2"
  • UV photodetector with UV erythem filter (UVI) and integrated amplifier
  • for UV-Index measurements up to UVI 30, compliant to ISO 17166, measurement uncertainty less than 5 %, cosine corrected
  • TO5 hermetically sealed metal housing with diffusor
  • 0 – 5 V signal output
  • 1 UVI results a voltage of approx. 170 mV
  • UV-Index sensor TOCON_E2 詳細規格

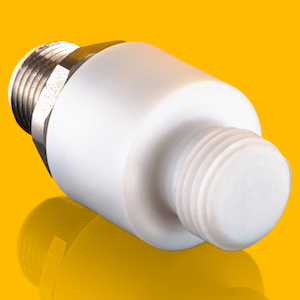

"UV-Index sensor TOCON_UVI"
  • UUV sensor (TOCON_E2) designed for very high accuracy UV-Index measurements
  • The measurement uncertainty of this sensor is less than 5 %.
  • PTFE housing with G1/4 thread, water proof up to 10 bar
  • Spectral response curve and the field of view (cosine type) are in near perfect accordance with the requirements defined in the ISO 17166 standard.
  • Supply voltage 7 to 24 V
  • 0 to 5 V signal output
  • Integrated sensor connector, incl. 2 m cable
  • UV-Index sensor TOCON_UVI 詳細規格

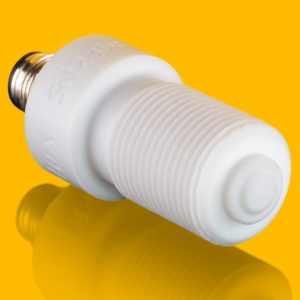

"UV-Index sensor probe UV-Cosine_UVI (ERYCA)"
  • UV sensor probe designed for very high accuracy UV-Index measurements
  • The measurement uncertainty of this sensor is less than 5 %.
  • Spectral response curve and the field of view (cosine type) are in near perfect accordance with the requirements defined in the ISO 17166 standard.
  • waterproof and suited for outdoor or in-water measurements
  • sensor signal output to be chosen
  • UV-Index sensor probe UV-Cosine_UVI (ERYCA) 詳細規格

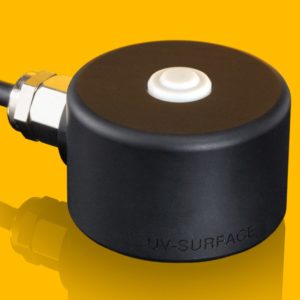

"UV-Index sensor probe UV-Surface_UVI"
  • UV sensor probe designed for very high accuracy UV-Index measurements
  • The measurement uncertainty of this sensor is less than 5%.
  • spectral response curve and the field of view (cosine type) in near perfect accordance with the requirements defined in the ISO 17166 standard
  • sensor signal output analog or digital
  • incl. 2 m cable
  • UV-Index sensor probe UV-Surface_UVI 詳細規格

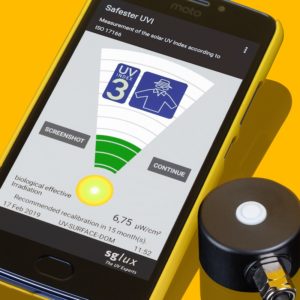

"Safester UVI"
  • Smartphone (Android) based UV-Index radiometer with graphic display for hazard assessment of natural UV radiation in workplaces according to ISO 17166 standard (UV-Index).
  • The price includes a UV index sensor with PTB traceable calibration, a calibration certificate and a smartphone.
  • This product is also available as software download without the Smartphone.
  • Safester UVI 詳細規格

"stand-alone UV Index Transmitter"
  • measurement of the UV Index
  • the UV sensor (sglux ERYCA) is featured by a spectral responsivity close to the erythema action curve as defined by ISO17166:2019
  • calculation of the UV Index according the WHO requirements
  • data transmission via cellular radio to a server using the MQTT protocol
  • PTB traceable calibration included
  • solar powered with integrated battery
  • various approaches to display the UV Index measured by the unit
  • stand-alone UV Index Transmitter 詳細規格

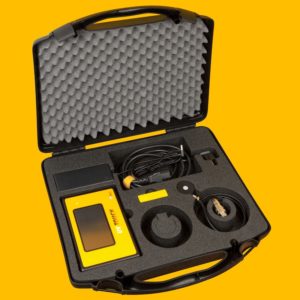

"UV-Index reference radiometer with UVI sensor probe"
  • Digital UV-Index radiometer with graphic display for hazard assessment of natural UV radiation in workplaces according to ISO 17166 standard (UV–Index).
  • This device is designed for developers and for all-day use under harsh conditions.
  • It offers a broad range of functions such as a datalogger, data export and graphic display with trend information.
  • The price includes a UV-Surface_UVI sensor with PTB traceable calibration, and a calibration certificate.
  • UV Sensor "UV-Surface_UVI" 詳細規格
