紫外線二極體轉換器 Photodiode Transducers
  • Photodiodes convert incoming electromagnetic radiation into electrical charge carriers. If photodiodes are short circuited an electrical current (photocurrent) proportional to the incident radiation intensity (number of photons per second) is induced. These photocurrents are generally small and cover the range from femtoampere to microampere . Signal transducers transform this weak photocurrent to robust standard signals for reliable data transmission and simple data acquisition.

  • The voltage which is present on the open pins of a photodiode without a short circuit (photovoltage) can be easily measured with a voltmeter but is strongly non-linear correlated to the radiation intensity and thus not very useful for the measurement thereof.

  • The transducers developed by sglux employ transimpedance amplifiers which short the photodiodes and therefore provide a linear relationship between the incident radiation intensity and the output signal.

  • We offer analogue transducers with different voltage output.

  • Furthermore we produce digital transducers which convert the photocurrent into digital representation transmitted to a computer via USB (Digiprobe, SGCD4). These transducers offer an increased dynamic range compared with the analogue transducers.

  • To control industrial UV applications our SENSOR MONITOR 5.0 supports multiple functions such as limit control, dosage control, lamp monitoring.

  • Photodiode Transducers 目錄下載

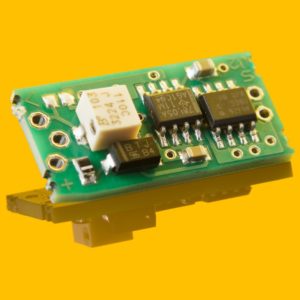

VOLTCON series    -  Transmitter of photocurrent to a 0-5V signal

  • Transducer photocurrent-to-voltage 0 - 5 V
  • Three different measurement ranges available: 50 nA, 5 μA and 500 μA

  • VOLTCON series 詳細規格

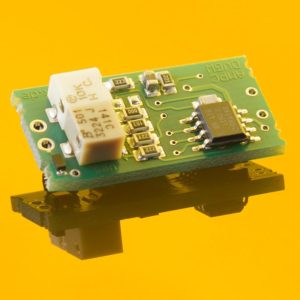

AMPCON series    -    Transmitter of photocurrent to 4-20mA current loop

  • Transmitter (current amplifier) with output current 4 to 20 mA
  • include photodiodes into an industrial 4 to 20 mA data bus
  • Maximum photocurrent: 250 μA, 2.5 μA or 25 nA

  • AMPCON series 詳細規格

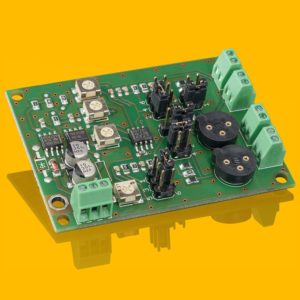

Multiboard (TW-MF2CAB)   -  Multifunctional 2-Channel Photodiode Amplifier

  • universal dual channel photodiode transducer
  • measuring range from 400 nA range up to 400 μA
  • versatile configuration possible
  • well suited for experimental setups and small series

  • Multiboard (TW-MF2CAB) 詳細規格

Digiboard    -    Multifunctional photocurrent amplifier board

  • versatile dual channel current to voltage converting amplifier
  • one analog and one frequency output

  • Digiboard 詳細規格

SGCD4    -    Switchable Gain Photocurrent Digitizer

  • switchable gain photocurrent digitizer, converting small DC currents (e.g. generated by photodiodes) into digital values transmitted via USB to a computer for displaying and recording
  • four switchable gain levels
  • no specific previous metrological knowledge needed
  • delivered with a PTB traceable current calibration

  • SGCD4 詳細規格

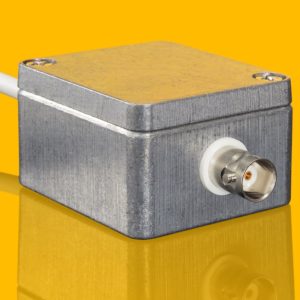

RADIKON-simple    -    external amplifier for the UV-Cure-HT sensor

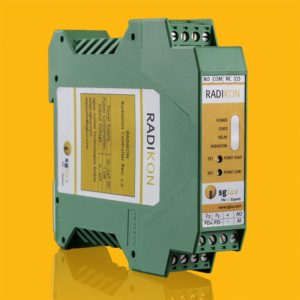

RADIKON    -   Versatile radiation controller for industry and science

  • Versatile industry measurement controller for control cabinet integration
  • adjustable setpoints, relay output, condition visualization via multicolor-LED
  • possible inputs – photo current 5 nA – 5 μA, 4 – 20 mA, 0 – 20 mA, 0 – x V (x configurable up to 10)
  • DIN rail mounting

  • RADIKON 詳細規格

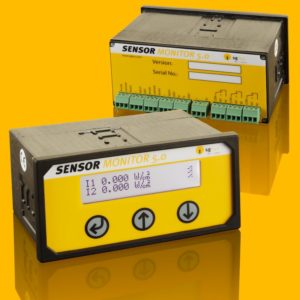

SENSOR MONITOR 5.0    -    Radiation monitor and controller

  • measuring and control module for monitoring and automation of irradiation processes
  • indication of radiation, dose and status information
  • three programmable relays for automation of single- and multi-level irradiation processes
  • optional with two measuring inputs and USB/RS232 output

  • SENSOR MONITOR 5.0 詳細規格

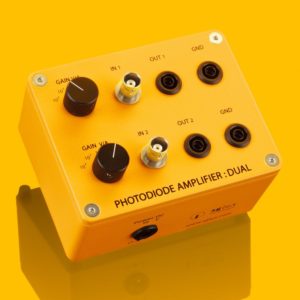

Photodiode Amplifier Dual    -   Two channel photocurrent amplifier

  • two channel photocurrent amplifier.
  • Output signal -5 V ... 5 V via banana plug
  • Both channels have 5 gain settings for amplification and measurement of photocurrents between 10 pA and 400 microA.
  • The instrument is used for amplification of low currents like they are generated by a photodiode

  • Photodiode Amplifier Dual 詳細規格

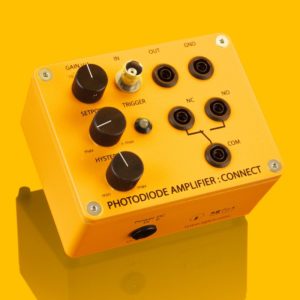

Photodiode Amplifier Connect    -   Photocurrent amplifier with relay output

  • photocurrent amplifier with integrated relay output
  • conversion of photocurrent into a 0 … 5 V output signal
  • maximum photocurrent: 100 pA … 40 μA
  • suited for experimental setups in measurement laboratories

  • Photodiode Amplifier Connect 詳細規格
